Understanding USPS and ADA Compliance for Mailbox Installations

By The Mailbox Works Team — Your trusted mailbox compliance experts since 1998

After over 25 years of helping property managers, builders, and HOAs with mailbox installations nationwide, we’ve learned that understanding compliance requirements upfront prevents costly project delays and retrofits.

This comprehensive guide explains the key differences between USPS and ADA compliance requirements, outlines when each applies to your project, and guides you on how to navigate both successfully.

Two Different Standards, Two Different Purposes

USPS compliance ensures mail carriers can safely and efficiently deliver mail to your property. These federal postal regulations apply to every mailbox that receives U.S. mail, regardless of the type of property.

ADA compliance ensures people with disabilities can access and use mailboxes. These accessibility requirements apply to shared mailbox areas in multi-unit buildings, commercial properties, and public accommodations, not individual single-family homes.

The key insight: Many projects require both types of compliance simultaneously, and conflicts between the two standards create challenges for property professionals.

Real-World Compliance Challenges We’ve Solved

Case Study 1: ADA Height Requirement Violations

The Problem: A multi-unit apartment complex installed recessed 4C mailboxes that met USPS standards but placed parcel lockers above ADA-compliant reach ranges. Although the units were USPS-compliant, the parcel locker portion was mounted too high, violating ADA height limits.

The Discovery: The issue wasn’t discovered until a resident advocate flagged it during move-in.

The Cost: The unit had to be remounted and adjusted, resulting in $2,600 in additional costs and a one-week project delay.

The Lesson: Always verify both compliance standards during the planning phase, not after installation.

Case Study 2: USPS Pre-Approval Assumptions

The Problem: An office building project team chose surface-mounted 4C mailboxes, assuming they were equivalent to recessed models for USPS approval.

The Discovery: When the USPS representative visited, they learned that surface-mounted options require special postmaster approval, which hadn’t been obtained.

The Cost: With units already installed, the project had to halt, remove the units, and reorder compliant recessed versions, resulting in a 9-day delay and complete reinstallation costs.

The Lesson: Understand which mailbox types are pre-approved versus those that require local postmaster sign-off before ordering.

Case Study 3: Parcel Locker Ratio Oversights

The Problem: A residential development initially ordered two parcel lockers for 30 mailbox units.

The Discovery: During USPS inspection, they learned that regulations require one parcel locker for every five mailbox compartments—they needed six total lockers.

The Cost: Additional orders and 3-day installation delays while sourcing and installing four more lockers.

The Lesson: Verify USPS parcel locker requirements early in the planning process.

USPS Compliance: The Mail Delivery Standards

Key USPS Requirements for Individual Mailboxes

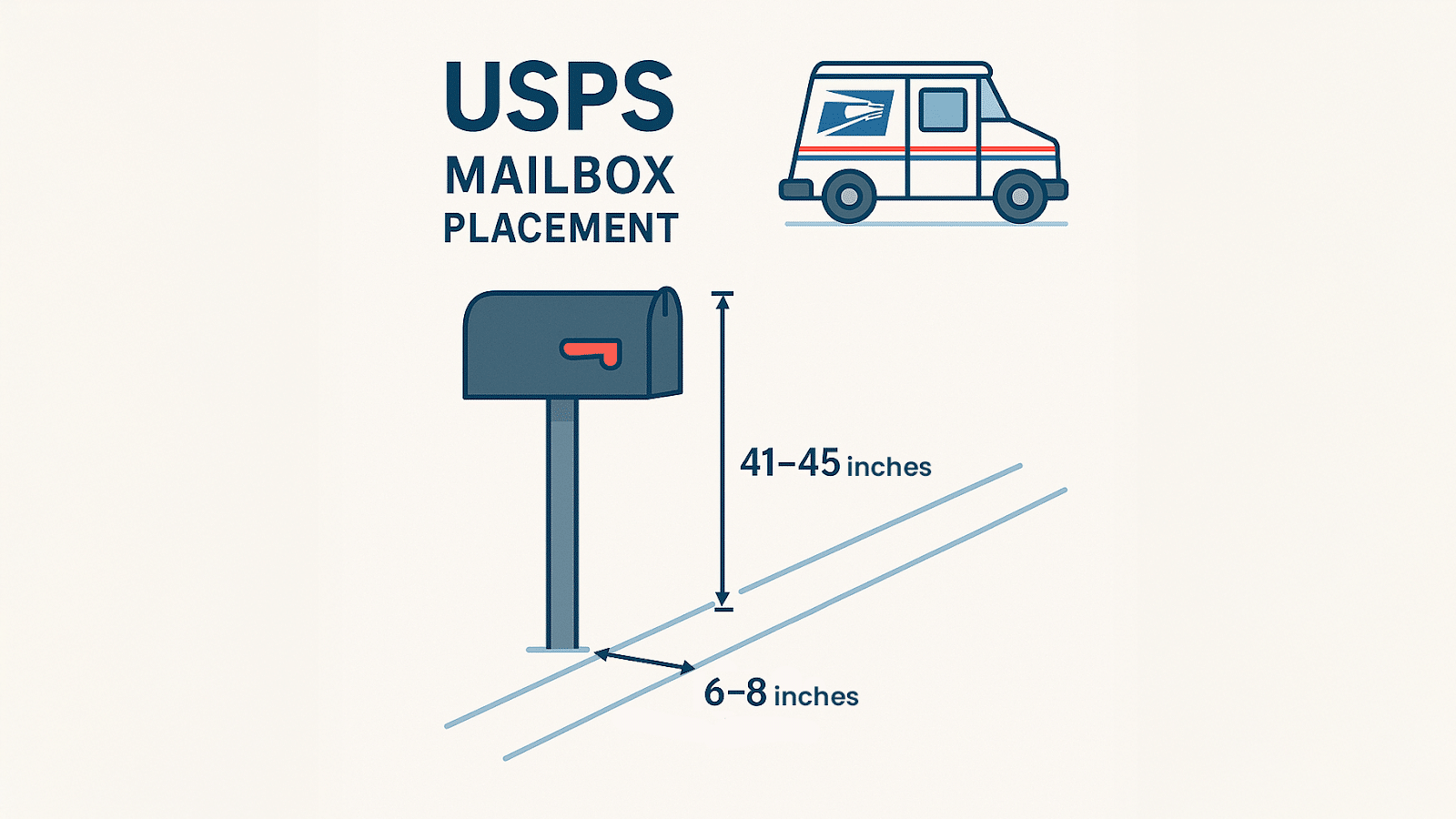

• Height: 41″–45″ from ground to mailbox door bottom
• Curb Distance: 6″–8″ from curb edge to mailbox front
• Clear Access: Postal vehicle approach without backing up
• Labeling: Clearly visible address numbers

Key USPS Requirements for Centralized Systems

• USPS STD-4C compliance for new installations with 8+ units
• Master loading access with USPS arrow locks
• Weather protection for outdoor installations
• Proper foundation and mounting specifications
• Parcel locker ratio: 1 locker per 5 mailboxes

Common USPS Compliance Issues

Pre-Approval Confusion: Only recessed 4C mailboxes are automatically USPS-approved. Surface-mounted and freestanding versions require postmaster approval before installation.

Parcel Locker Requirements: USPS requires one parcel locker per five mailboxes for STD-4C compliant systems. Missing this ratio can halt project approval.

Vehicle Access: Postal delivery trucks cannot back up, so installation locations must allow a forward approach and exit.

ADA Compliance: The Accessibility Standards

When ADA Requirements Apply

ADA compliance is MANDATORY for:

• Multi-unit residential buildings (apartments, condos)
• Commercial properties with mailbox areas
• HOA centralized mailbox locations
• Any “public accommodation” mailbox installation

ADA compliance is NOT REQUIRED for:

• Individual single-family home mailboxes
• Private residential mailboxes on individual lots

Key ADA Requirements

Reach Ranges:

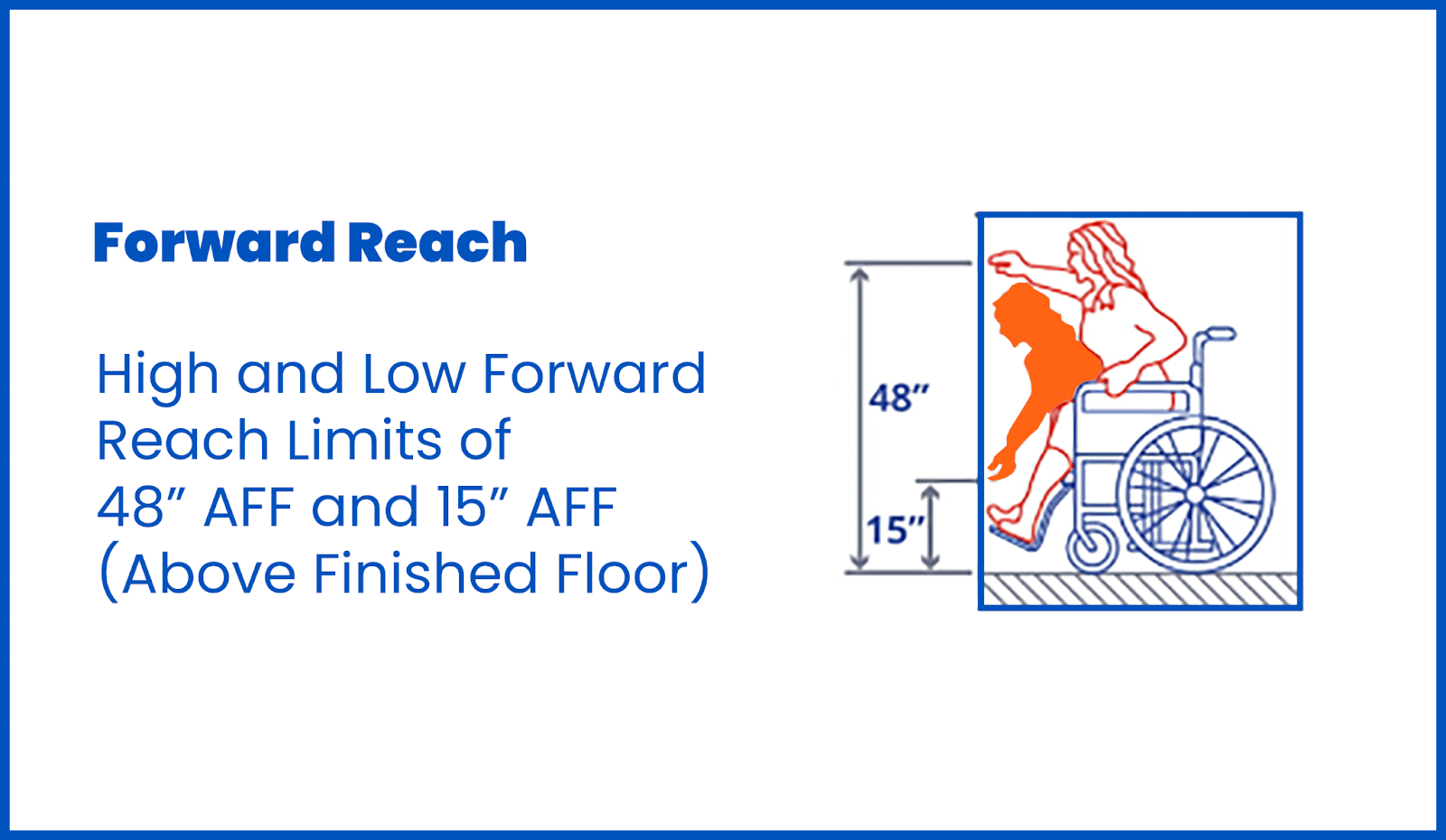

• Forward Reach: 15″–48″ from floor
• Side Reach: 9″–54″ with clear floor space

Clear Floor Space:

• 30″ x 48″ minimum clear area in front of mailboxes
• Accessible route to mailbox area

Hardware Operation:

• Operable with one hand
• No tight grasping or pinching required
• Maximum 5 pounds of force

Common ADA Compliance Issues

Height Violations: The 48-inch maximum height limit is critical for ADA compliance, and many standard installations exceed this.

Insufficient Clear Space: Narrow hallways or tight outdoor installations frequently violate the 30″ x 48″ clear floor space requirement.

Inaccessible Approach Routes: Mailbox areas accessible only by stairs or through areas with barriers violate ADA requirements.

Critical Reality: CBU ADA Compliance

Important Clarification: Standard cluster mailboxes (CBUs) are not automatically ADA-compliant as complete units. Here’s why:

The 48-Inch Rule: ADA compliance requires mailbox access within 15″–48″ from the ground. Most CBUs have compartments that extend well above 48 inches.

Compartment-Specific Compliance: In a standard CBU:

• Lower compartments (within 15″–48″) = ADA compliant
• Upper compartments (above 48″) = NOT ADA compliant

Practical ADA Accommodation: Properties achieve ADA compliance by:

1. Ensuring at least some compartments fall within the 15″–48″ range
2. Assigning disabled residents to lower, compliant compartments
3. Maintaining the required clear floor space and accessible routes

Bottom Line: You can’t make upper CBU compartments ADA compliant, but you can accommodate disabled residents through strategic compartment assignment.

Where USPS and ADA Requirements Intersect

The most complex projects require both postal efficiency and accessibility. Here’s how to navigate potential conflicts:

Cluster Mailbox Installations

Challenge: Standard cluster mailboxes have compartments above the 48″ ADA height limit. Solution: Plan for ADA accommodation through lower compartment assignment rather than trying to make the entire unit compliant

Challenge: Concrete pad placement affects both postal vehicle access and accessible approach routes Solution: Plan locations accommodating both postal truck maneuvering and ADA approach requirements

4C Horizontal Mailbox Projects

Best Practice: Choose recessed installations when possible—they’re USPS pre-approved and easier to mount at ADA-compliant heights.

ADA-Compliant Options: Consider ADA-compliant 4C mailboxes specifically designed to meet accessibility requirements.

Planning Consideration: Indoor 4C installations typically offer more flexibility for ADA compliance than outdoor cluster mailboxes.

Success Story: Proactive Planning Prevents Problems

A residential development team contacted their local USPS office during the early planning stages. They shared site plans, confirmed placement for cluster mailboxes, and received written pre-approval before placing their order.

Results:

• Installation completed without issues
• USPS inspection cleared on first attempt
• Project stayed on original timeline
• No costly retrofits required

Key Success Factor: Early coordination eliminated potential delays and ensured compliance from day one.

Product Selection for Different Compliance Scenarios

Based on our experience with thousands of installations, here are the most reliable compliance choices:

Multi-Unit Residential (Requiring Both USPS and ADA Accommodation)

Recommended: Cluster mailboxes with strategic compartment planning

• Pre-approved by USPS
• Plan for disabled resident assignment to lower compartments (15″–48″)
• Include required parcel lockers (1 per 5 mailboxes)
• Ensure proper clear space and accessible routes

Commercial Properties

Recommended: ADA-compliant 4C horizontal mailboxes

• USPS is pre-approved for indoor installation
• Designed to meet ADA height requirements
• Professional appearance for business environments

Retrofit Projects

Recommended: Direct replacement systems where permitted

• Lower compliance complexity
• Work within existing space constraints
• Consider 4B horizontal mailboxes for existing installations

Your Compliance Planning Checklist

Pre-Project Planning

☑ Determine which standards apply (USPS, ADA, or both) ☑ Consult local postmaster for USPS requirements ☑ Review municipal accessibility requirements ☑ Plan installation locations considering both vehicle and pedestrian access

Product Selection

☑ Choose USPS pre-approved products when possible ☑ For CBUs: Plan compartment assignment strategy for ADA accommodation ☑ For 4C units: Consider ADA-compliant models for full accessibility ☑ Verify parcel locker requirements (1 per 5 mailboxes) ☑ Confirm mounting and foundation specifications

Installation Coordination

☑ Schedule USPS site visit before installation ☑ Verify ADA approach routes and clear spaces ☑ Test all operations and accessibility features ☑ Plan compartment numbering for strategic assignment ☑ Complete final inspections before project closeout

Avoiding Costly Compliance Mistakes

Plan Early: Including compliance requirements in initial project planning costs significantly less than retrofits. The most expensive issues occur when requirements aren’t considered during planning.

Choose Pre-Approved Products: USPS pre-approved mailboxes eliminate approval delays and reduce installation complexity.

Understand ADA Reality: Don’t assume entire CBU units can be made ADA compliant—plan for accommodation through strategic assignment.

Verify Requirements: Don’t assume all similar products have the same approval status—confirm before ordering.

Getting Expert Guidance

Mailbox compliance requirements can be complex, particularly when both USPS and ADA standards apply. Based on our 25+ years of experience with installations across all property types, successful projects begin with understanding which requirements apply and selecting products that meet those standards from the outset.

Need help determining compliance requirements for your property? Our expert team can help you understand which standards apply to your project and recommend products that meet USPS requirements while providing practical ADA accommodation strategies.
