12 Door CBU Classic Mailboxes Accessories by Vogue

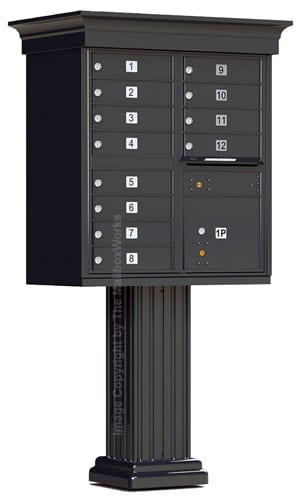

12 Door CBU Mailbox Vogue Classic
Click image to enlarge.
usps-olp1.gif mailboxworks-usps-approved.gif
  • Retail Price: $1827
  • Our Price: $1588
  • Free Shipping
  • No tax outside IL
  • In Stock
  • Ships in 2-3 Days.
Volume Discount Pricing
QuantityPrice
2-5$1523
6+$1472

Vogue Classic Mailbox Accessories

Order Auth Florence 12 door CBU classic mailboxes accessories for replacement purposes or for new build neighborhoods and set your centralized mail delivery center apart from the rest. The clean lines on the crown moulding roof cap, reinforced column cover and mailbox pedestal base put the finishing touches on the world’s most secure and trusted Commercial Mailboxes by Auth Florence.

  • Easy snap together mailbox roof and pedestal technology using minimal hardware makes installation easy while maintaining the integrity of the original USPS approved CBU mailbox unit.
  • Secure Roof Cap to the top of the cluster mailbox and attach Post Column to the standard pedestal that comes with the cluster box unit. Post Base wraps around the existing post to finish off the look.
  • 12 door CBU classic mailboxes accessories are made from 100% die cast aluminum and available in 4 rugged, architectural weather resistant powder coat finishing colors.

Cluster Box Unit Security Features

  • As the most secure free standing CBU mailboxes on the market, these 12 door cluster box units offer a stylish centralized mail delivery center that can be installed individually throughout a neighborhood or grouped in one location.
  • Outgoing mailbox slot is prepared for USPS Arrow Lock and features a weather protection hood and anti-fishing aluminum comb.
  • All CBU Mailboxes by Florence Manufacturing are constructed from heavy duty extruded aluminum, 360 degree wrap around stainless steel hinges plus interlocking and overlapping seams.

More Cluster Mailbox Accessory Specs

  • Includes 12 tenant compartments, 1 parcel compartment and 1 outgoing mail slot. Each tenant compartment is secured by a 5-pin cylinder cam lock equipped with a set of 3 keys. Each parcel locker is secured by USPS approved locks.
  • Door numbering options include standard silver placards as shown, plus custom silver placards or engraving. Pricing for each option can be previewed to the right under “Tenant Door Identification”.
  • Suitable for military bases or use for commercial and industrial retail or business offices plus residential multi-family complexes and much more. Speak to MailboxWorks about private delivery lock options.
  • Custom Silver Decals can have up to 6 7/8″ characters; USPS recommends up to 3 characters. Custom engraving can have up to 12 3/4″ characters and has black or white color fill options.

For more information or for assistance purchasing CBU mailboxes please call our mailbox experts Toll Free at 1-800-824-9985.

see more details
Quantity

    Ships In 1-2 Weeks

    Ships In 1-2 Weeks

    Choose wedge stud anchors as the installation hardware when selection professional mailbox installation Option B or Option C

    Constructed of Stainless Steel

    Constructed of Stainless Steel

Finishes and Accents

Swipe left or right.

Product Options

Product Details

Dimensions

Item Height (inches) Width (inches) Depth (inches)
Overall 65.125 33.875 21.375
Standard Compartments 3.25 12.875 16.75
Outgoing Mail Compartment 3.25 12.875 16.75
Parcel Compartments 10.25 12.875 16.75

Details

  • Mailbox Item Number: AFECBU12
  • Roof Cap Item Number: AFECBUCAP
  • Post Column Item Number: AFECBUPLRSM
  • Includes: Mailbox, Pedestal, Vogue Classic Accessories, 3 Keys per Door
  • Manufacturer: Auth Florence Manufacturing
  • Shipping Weight: 171 lbs.
  • Locking: Locking mailbox.
  • Parts: We sell replacement parts for this product.

Videos

Additional Images

Click image to enlarge.
Click image to enlarge.
Click image to enlarge.
Click image to enlarge.

Aditional Product Options

We Offer Mailbox Installation Nationwide

CBU Mailbox Installation

When selecting the options for your CBU mailbox you will see we offer “Professional Mailbox Installation”. Three choices for installation are offered to make your experience complete for all your CBU mailbox needs.

Option A – Installer uses existing anchor bolts to mount pedestal.

Choose this option if you have existing cluster mailboxes that have anchor bolts that are secure and in good condition and match the footprint of the new cluster mailbox. The installer will then bolt the new mailbox pedestal to the existing anchors and mount the mailbox to the pedestal.

Option B – Installer secures pedestal to new anchor bolts in existing concrete.

Choose this option if you have a concrete pad that is in good condition and does not have anchor bolts. The installer will install the new wedge stud anchor bolts, install the pedestal, and mount the CBU mailbox. Wedge stud anchor bolts can be purchased from The MailboxWorks with your CBU.

Option C – Installer replaces existing anchor bolts.

This is like Option B except that the installer will remove the existing anchor bolts first and then install the new wedge stud anchor bolts.

  • Reasons when this option may be needed:
    • You are replacing an older CBU or NDCBU where the new cluster mailbox pedestal cannot mount to the existing anchor bolts.
    • Any other reason where the cluster mailbox pedestal cannot be installed onto the old anchor bolts.

Return to Top

FAQs for the Mailbox Installation:

What is included with the mailbox installation?

  • Unboxing of your brand new CBU mailbox that was ordered from The MailboxWorks
  • Installing the pedestal onto the existing concrete pad covered by one of the options above*.
  • Securely mounting the CBU mailbox on top of the pedestal.

Do you offer installation in my area?

YES, unless you are outside the continental US. We provide installation services for The MailboxWorks customers in the 48 states of the continental US.

Are your mailbox installers insured and licensed?

YES, our professionals are insured and licensed.

Can my existing cluster mailbox be taken away?

When you are replacing an existing CBU mailbox (pedestal cluster mailboxes) we can arrange to have the installer remove the old CBUs from the job site. We do need to be notified in advance of the installation. There is a charge of $100.00 in addition to the installation service for removal of the existing CBU cluster mailboxes.

Can the installer apply number decals that were ordered loose?

NO, unfortunately you would need to apply any number decals that were ordered loose and not already applied to the cluster mailbox. This is a rare occurrence because number decals are standardly applied to Florence CBU cluster mailboxes. An alternate brand, if ordered, can have decals come loose or if the customer specifies loose decals at the time of ordering.

How do I know if Option A, Installer uses existing anchor bolts to mount pedestal, will work for my cluster mailbox installation?

Measure the distance from left to right using the center of one bolt to the center of the other bolt and verify it measures 10”. Then measure the distance from front to back using the center of one bolt to the center of the other bolt and verify it measures 4”. (see pictures)  If those measurements agree and the bolts are in good condition then Option A should work for you.

CBU Mailbox Pedestal Bolt Footprint Dimensions

Will the installer provide anchor bolts for my cluster mailbox?

NO, you would need to make the anchor bolts available.  If the cluster mailbox is being installed on existing anchor bolts you are all set. Otherwise make it easy and purchase the anchor bolts with your CBU mailbox. If other supplies to secure your cluster mailbox are needed, the installer may be able to provide these at an additional charge.

Does The MailboxWorks coordinate the installation with the installer?

YES.  Before the appointment we coordinate with the installer. We will contact you to coordinate an installation schedule.  Also, the schedule will be confirmed again just prior to the installation along with any pertinent details. The customer would be responsible for meeting with the installer at the scheduled installation appointment. After your install is complete you will receive all the keys for the tenant mailboxes from the installer so that you can hand them out to residents.

Why should I order professional installation service from The MailboxWorks?

A mailbox specialist from The MailboxWorks helps you from the moment you place your order until the installation is complete. We will communicate with your local post office and the professional installers and ensure everything is coordinated.

Installing a CBU mailbox can be a complex process. From knowing how to securely mount the cluster box unit to having the USPS come out and install their locks, the steps can be involved. Our professional installers and The MailboxWorks specialists make the process a snap.

*The customer is responsible for ensuring that the location for the installed CBUs meet the USPS requirements.  Customers should contact their local Postmaster and review the location and any requirements before the installation of the cluster mailboxes at your location.

Return to Top

CBU Mailbox Installation Hardware

Whether you are installing your new CBU mailboxes yourself or having our professional installers do it, we offer two types of anchor bolts as well as optional vandal proof nuts for your cluster mailboxes.

L-Bolt Anchors

L-Bolt Anchors are used when new concrete pads are being poured for your cluster mailboxes. The L shaped anchor bolt is inserted into the wet concrete so that as the concrete sets the bolts are secured in place. If new concrete is being poured, the L-bolt is the best possible CBU mailbox anchoring option. This option comes with 4 stainless steel L-bolt anchors that are 7 inches by 2 inches, 4 washers, and 4 matching hex nuts.

CBU Mailbox Install L Bolt Anchor

Wedge Stud Anchors

Wedge Stud Anchors are used when there is an existing concrete pad that is in good condition and meets postal approval for cluster mailboxes. A hole is drilled into the concrete and the anchor bolt is inserted. Then as the nut is tightened and the anchor is pulled up, the base expands for secure holding of your CBU mailbox. This option comes with 4 stainless steel wedge stud anchors that are ½ inch wide and 5 ½ inches long, 4 washers, and 4 matching hex nuts.

CBU Mailbox Installation Stainless Stud Anchor

Tamper-Resistant Nuts

Upgrade your installation hardware by including two optional tamper-resistant nuts to prevent your CBU cluster mailbox from being stolen. The nut is easily installed using a standard socket or wrench. The hex head breaks away upon tightening and leaves a non-removable cone. Tamper-resistant nuts install easily but are hard to remove. The set of 2 stainless steel tamper-resistant nuts should be installed kitty corner from each other in order to deter theft.

CBU Mailbox Install Break Away Nut

This is an example of use of the tamper-resistant nuts used in another application.

Return to Top
